Description
Catia V5 – Electric Vehicle High Voltage Harness Design Course. This course covers the design of high voltage wiring harnesses (HV Harness) in electric vehicles using Catia V5 software. The course instructor, Alex, with over 18 years of engineering experience in the automotive, rally and industrial design industries, and working with major companies such as the Ferrari Formula 1 team, Red Bull Racing, Jaguar Land Rover and Aston Martin, provides learners with extensive practical experience. The course content begins with an introduction to the general structure of electric vehicles and the number of high voltage pipelines in them. It then examines the components of an HV pipeline, the principles of selecting these components, design rules and best practices. A significant part of the course is dedicated to examining the traction battery as one of the main components of an electric vehicle, including its components and operating principles. After these theoretical foundations, the course provides practical CAD design projects to apply what has been learned. Although designs are done in CATIA V5, the provision of STEP files allows users of other CAD software to contribute to projects. This course is designed as an effective way to gain the practical experience needed to pursue career opportunities in this field.
What you will learn
- Learn how to design high-voltage electrical wiring harnesses, just like a real job in a company.
- Familiarity with the structure of an electric vehicle.
- Introduction to the structure of an electric vehicle’s traction battery.
- Introduction to high voltage wiring harness components and the basic principles of their selection.
- Carrying out several high voltage wiring harness design projects jointly.
- Internal wiring harness design for an electric vehicle traction battery.
- Providing CAD files for each project.
- Design is done with Catia V5, but projects can be designed with any other CAD software.
This course is suitable for people who:
- Those interested in becoming a Harness Designer.
Course details
- Publisher: Udemy
- Instructor: Alexander Consulting
- Training level: Beginner to advanced
- Training duration: 9 hours and 55 minutes
- Number of lessons: 52

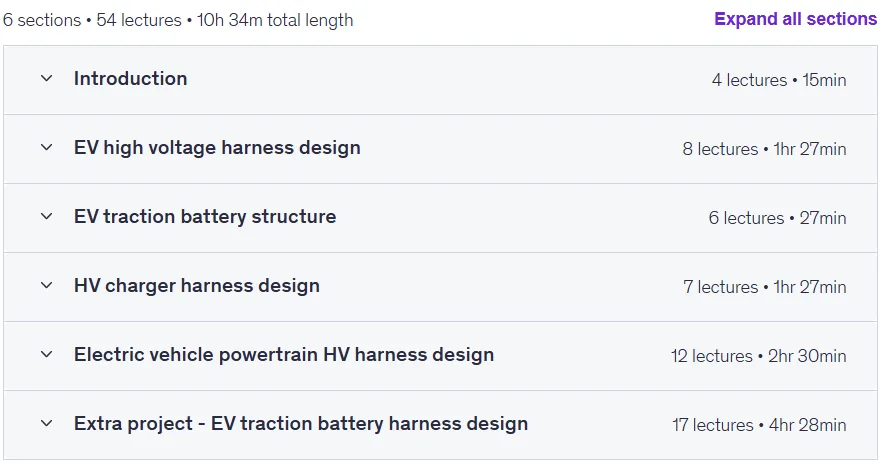

Course syllabus in 2023/9
Prerequisites for the Catia V5 – Electric Vehicle High Voltage Harness Design course
- To do this course you need to know how to use Catia V5 Electrical Part Design/Assembly and Catia V5 Electrical Harness Design/Installation
- You need to have Catia V5 installed
Course images
Sample course video
Installation Guide
