Descriptions

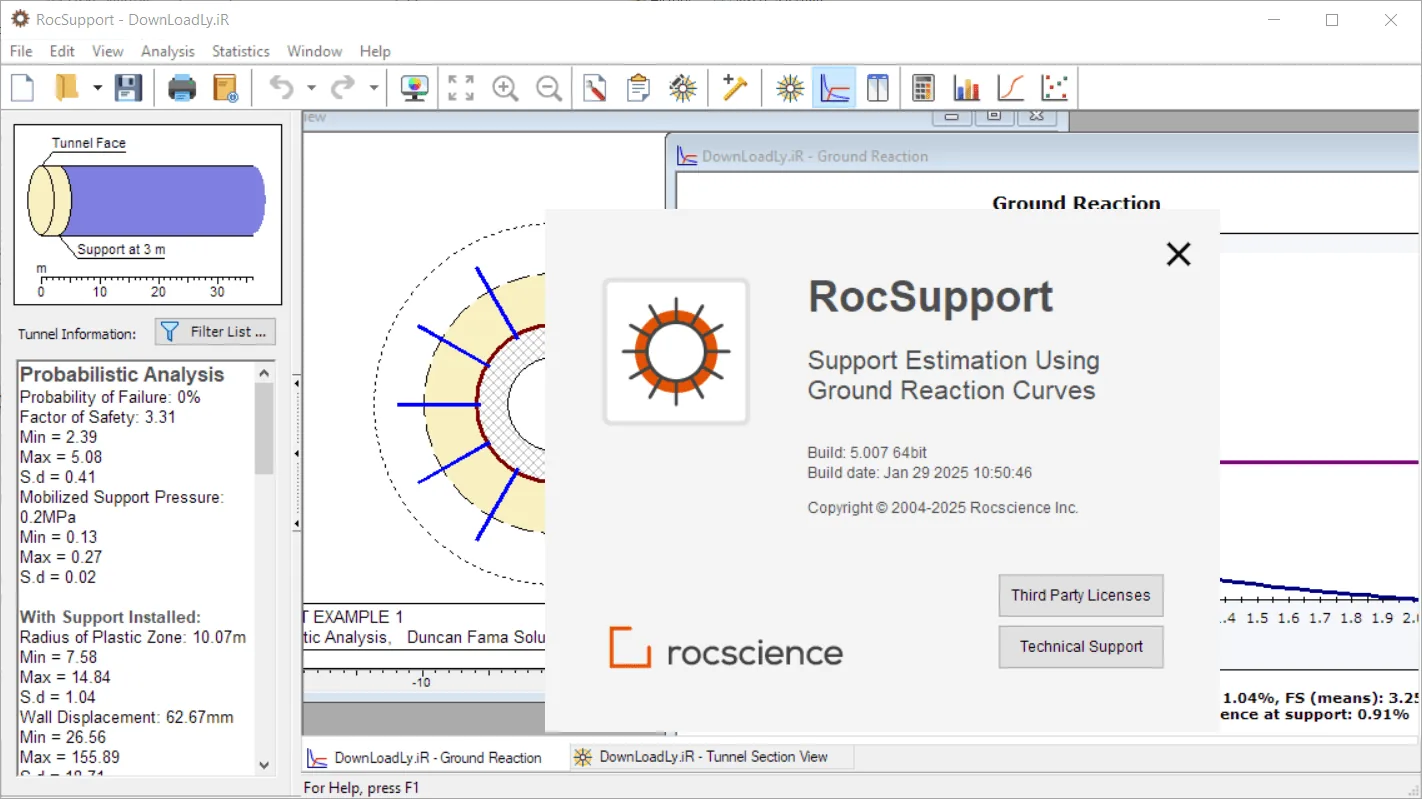

Rocscience’s RocSupport is a user-friendly software designed to estimate deformations in weak rock for circular or near-circular excavations. It uses ground reaction curves to visualize tunnel interaction with various support systems. Easily estimate deformation of circular excavations in weak rock. Using tunnel radius, in-situ stress conditions, rock parameters, and support parameters, RocSupport calculates a ground reaction curve and a support reaction curve. The intersection of these curves determines the factor of safety for the support system. Install combinations of rockbolts, steelsets, shotcrete, or custom supports. You can select from a library of predefined supports using manufacturer specifications. Define support installation as the distance from the tunnel face, by percentage of tunnel convergence or by tunnel displacement. Compute a factor of safety with deterministic analysis or determine the probability of failure for probabilistic models using convergence-confinement analysis. Model variability in tunnel radius, in-situ stress, and rock material properties by assigning statistical distributions to variables. Generate histogram, cumulative, and scatter plots of statistical data.
Features of Rocscience RocSupport :
- Geometry Modeling: Import various 3D geometries and design excavations.
- Surface Meshing: Simplifies and efficiently discretizes the model.
- Elastic Stress Analysis: Analyze stress distribution and displacement.
- Data Visualization: Visualize results on the mine’s surface and at pre-defined field points.
- Integration with RS3: Seamlessly import models from RS3 for comprehensive analysis.
- User-Friendly Interface: Robust and efficient for analyzing complex underground mining excavations
System Requirements
Operating System
Windows 10 (64-bit), Windows 11 (64-bit)
RAM
Minimum requirement : 8 GB
Recommended requirement: 16 GB
Hard disk space
100GB hard disk space
Buy
For any question Contact us
Size
148 MB
