Description
The AGI Systems Tool Kit software, popularly known as the Satellite Tool Kit, is a software package developed by AGI Analytical Graphics, Inc., known as STK, and was created in year 4. This software enables engineers to simultaneously analyze land, sea, air, air, and so on. The primary use of software is to analyze and solve satellite rotation problems around the Earth. The software is currently used in the aerospace and military industries.
The software is used by organizations such as NASA, ESA, CNES, DLR, Boeing, JAXA, ISRO, Lockheed Martin, Northrop Grumman, EADS, DOD, and Civil Air Patrol. Uses of this software:
Space situational awareness
Space missions
Aircraft missions (including UAVs commonly known as drones)
Missile defense
ISTAR / ISR / C4ISR
Electronic systems and communications
This software, like MATLAB software, can create plugins. This software package can be used with C, C ++, C #, Perl, Visual Basic, VBScript, Java, JavaScript and MATLAB.
System Requirements
Supported operating systems
- Windows 11
- Windows 10
- Windows Server 2016
- Windows Server 2019
Hardware Requirements
| Hardware | Requirements |
|---|---|
| Processor | Use Intel® Core™ i5 or better, or AMD Ryzen™ 5 or better. |
| Memory / RAM | The minimum is 8 GB; AGI recommends 16+ GB. |
| Disk Space | The minimum is 3 GB; AGI recommends 500 GB depending on your use of supplemental capabilities and data products. Refer to the Supplemental STK Capabilities topic for more information. |
| Graphics Card | Use a graphics card that supports OpenGL 2.0.
If you happen to run into an issue with using your graphics card with STK, please refer to Troubleshooting Graphics Card Issues. GPU used for Solar Panel Tool and 3D Tiles. You need to enable the Accelerated Analysis option in the Edit Preferences – General tab. For more information, see our General help. |
Minimum software requirements
- Microsoft Internet Explorer 11
- Any Windows Server instances require Desktop Experience
Maximizing performance
There are many mission-related factors that impact STK’s processing performance for a given scenario, including the following major factors:
- The number of objects in your scenario
- The complexity of your analysis calculations
- The duration of your analysis period
- Your choice of graphics resolution level
Virtual environments
You can run STK with accelerated graphics in a virtual environment when it is configured on a computer that meets additional hardware and software requirements
Note;

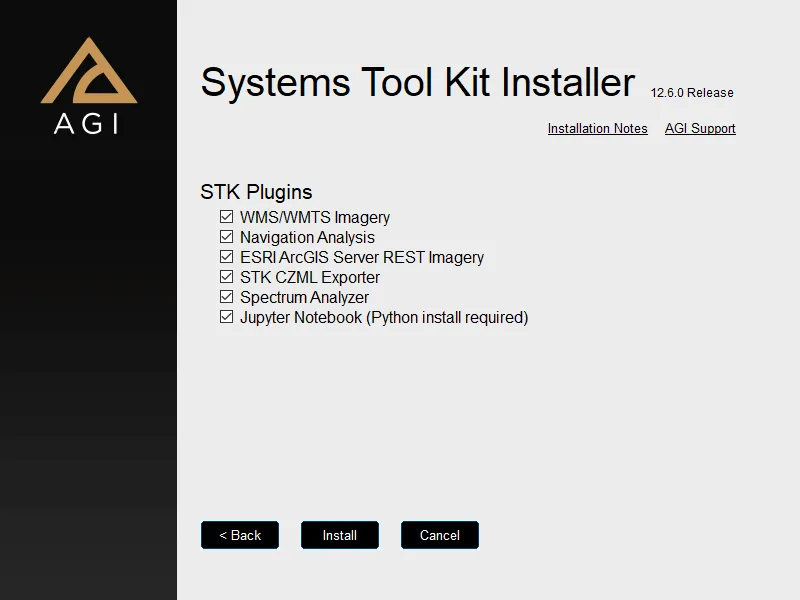

In this version a number of plugins are available when installing the software (picture above), and some others can be installed separately, which are listed below:
STKAnalyzer v12.6.0
STKEOIR v12.6.0
STKScheduler v12.6.0
STKSEET v12.6.0
STKTirem v12.6.0
STK Engine Resources v12.6.0
STK Urban Propagation v12.6.0
